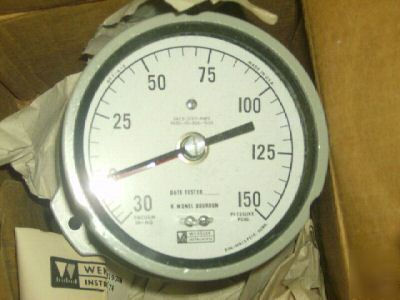

Weksler compound gauge vacuum SA23-3CEP-rwby -30 to 150
Weksler Compound Pressure gauge. NSN 6685-00-906-1456 or part number SA23-3CEP-RWBY. Please refer to the following specs for more information:
30.0 inches of Mercury and 25.0 lbs per sq inch
0.0 / 30.0 inches of mercury and 0.0 / 150.0 lbs pressure per sq inch
5.0 inches and 5.0 lbs per sq in
* Scale Accuracy: Porm 1 PCT Full Range
* Actuating Element Material: Nickel Copper Alloy
* Scale Inscription/background color: Black figures on white background
* Scale name for which pointer is designed: Pressure-vacuum
* Connection Size: .25 inch tube
* Special Features: Shockproof safety type case
