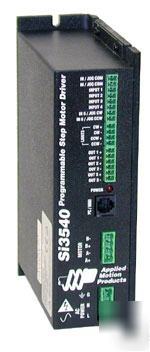

Applied motion SI3540 programmable step motor driver
Applied Motion Si3540 Programmable Step Motor Driver
http:// /search/ProductDetail.aspx?R=Si3540virtualkey55010000virtualkey834-SI3540
Siâ„¢, Si Command Language (SCL) or SiNet Hub programming languages included with drive
• AC input 110 V or 220 V switch selectable, 50-60 Hz
• DC bus voltage 35 VDC full load, 40 VDC nominal
• Software selectable motor current from 0.2 – 3.5 amps/phase
• Software selectable motor resolution from 2,000 to 50,800 steps per revolution
• Software selectable idle current reduction 0, 25%, 50% or 100%
• Eight optically isolated programmable inputs 5 – 24 VDC. 2,200 ohms internal resistance. Can be configured for sinking (NPN) or sourcing (PNP) signals.
• Three optically isolated programmable outputs 12 – 24 VDC, 100mA maximum
• RS-232 for PC/MMI communications
• Dual, MOSFET H-bridge, 3 state, pulse width modulated amplifier switching at 20 – 30 KHz
• Ideal for 4, 6 or 8 leaded step motors NEMA sizes 11, 14, 17 and 23
• Optional Man Machine Interface (MMI) allows machine operator to enter specific motion parameters
