New data intl 5.7 inch 320 x 240 lcd DG320MONO dg-32240
Sales Tax is applicable in the following state: New York.
NEW Data Intl 5.7 inch 320 X 240 LCD DG320MONO DG-32240

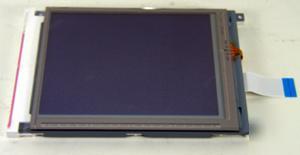

Condition: These displays are NEW OEM modules. They were originally bulk packaged for OEM distribution. We have repackaged them for individual sale. The unit is being sold as pictured; it does not include any documentation, software, or drivers.
Description: This LCD Module was manufactured by Data International for an OEM application. The module is made up of a DG-32240 Mono display with a touch screen overlay. It is new and has never been installed. We have listed the modules measurements below as well as the pin-out for the display. We do not have any specifications for the touch screen overlay or the pin-out for it. Specifications:
* Module Size: 167.1 mm (W) X 109.0 mm (H) X 10.0 mm (T)
* Viewable Area: 122.0 mm (W) X 92.0 mm (H)
* Dot Size: 0.33 mm X 0.33 mm
* Dot Pitch: 0.36 mm X 0.36 mm
* Supply Voltage for Logic: 0 to 6.5 V
* Supply Voltage for LCD Drive: 0 to 27.5 V
Note: Please confirm compatibility with your application before purchasing becasue we do not accept returns due to compatibility issues.
Warranty: This item is being sold with a 30 Day Warranty. You have 30 days from the date of purchase to notify us of any issues with the item.
Product Code: DG320M0N0240-5.7B-T59
