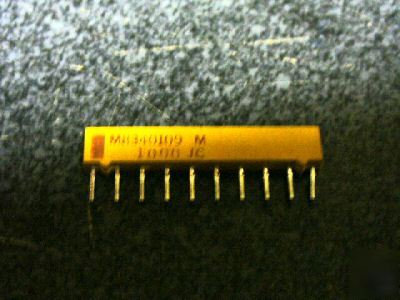

Resistor network,fixed,film
ELECTRICAL RESISTANCE - 100.000 OHMS
IDENTICAL VALUE RESISTOR QUANTITY - 9 EACH RESISTOR
RESISTANCE TOLERANCE IN PERCENT - -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS - 1.080 TOTAL NETWORK
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 70.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -300.0 TO 300.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
SCHEMATIC DIAGRAM DESIGNATOR - 3 LADDER NETWORK
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 218 SINGLE INLINE
BODY LENGTH - 0.968 INCHES MINIMUM AND 0.998 INCHES MAXIMUM
BODY WIDTH - 0.050 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
BODY HEIGHT - 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 0.125 INCHES MINIMUM AND 0.150 INCHES MAXIMUM
TEST DATA DOCUMENT - 81349-MIL-R-83401 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-83401/9 GOVERNMENT SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-83401/9
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M8340109M1000JC
