New brand belimo LM24-s us actuator
Power supply 24 VAC ± 20% 50/60 Hz 24 VDC ± 10%
Power consumption running: 2 W; holding: 1 W
Transformer sizing 3 VA (Class 2 power source)
Electrical connection* 3 ft, 18 GA, UL CL2P plenum cable
Overload protection Electronic throughout 0 to 95
°, adjust. with mechanical stops
Direction of rotation reversible w/switch L/R (not on
Position indication clip-on indicator (not on
° to 95°, SPDT 6 A (2.5A) @ 24 VAC
Running time 80 to 110 sec. for 0 to 35 in-lb
Manual override external push button
Humidity 5 to 95% RH, non-condensing
Housing type NEMA type 2 (-T models NEMA 1)
Housing material rating UL94-5V
Noise level less than 35 dB (A)
Agency listings UL 873 listed, CSA C22.2

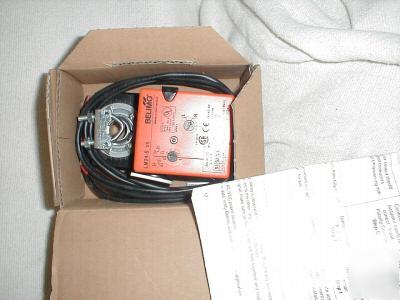

THIS PRODUCT IS NEW STILL IN BOX WITH DIRECTIONS.
