New strobemaster 5 - 12000 fpm stroboscope analyzer

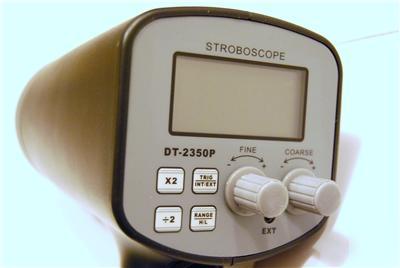

New StrobeMaster 5 - 12000 FPM Stroboscope Analyzer
This stroboscope emits an adjustable flash rate. When the rate of the flash equals the velocity of the moving object it appears still. When the speed of the flash is slightly less than the motion of the object, it appears to move very slowly. Both of these can be used to analyze a moving process that is running at high speeds.
The StrobeMaster® features a built in LCD for accurately displaying the Flashes Per Minute (FPM). It also features an external trigger switch for easy operation and synchronization, as well as dual stage strobe technology to protect the bulb at high flash rates. This versatile unit produces a flash range from 50-12,000 Flashes Per Minute.
Don't settle for cheap imitations. Only StrobeMaster® features the best state of the art engineering and a 1 year warranty against failure under normal operations.
· LCD display : 4 digits, 10mm (0.4") LCD
· Parameters Measured : FPM (Flash per minute)
· Range : 50 - 12,000 FPM (Flash per minute)
· Resolution : 0.1 FPM (50 - 999.9 FPM) ; 1 FPM (over 1000 FPM)
· Internal or external triggering conversion
· External trigger level : 3 - 24 V (see below)
· H/L range : Manual conversion (Flashing light is much brighter at low range than at high range)
· Strobe Flash tube type : Xenon lamp
· Operating condition : 0 - 40°C , below 85% RH
· Unit size : 215 x 85 x 180 mm (8.5 x 3.3 x 7.1 inch)
· Power supply : 110V A.C. with USA plug
* 1 pc Spectroscope with power cable
* 1 pc Spare Flashing Tube Bulb
