Rohde & schwarz SME03 /B11 signal generator

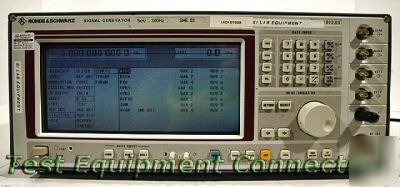

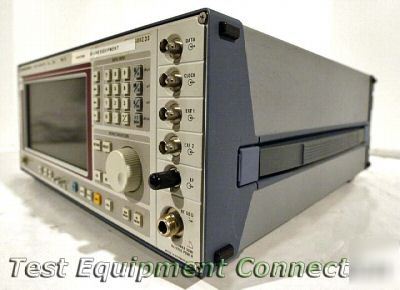

The Rohde & Schwarz SME03 is a 5 kHz to 3 GHz Signal Generator.
Measurements/Features * Overload protection

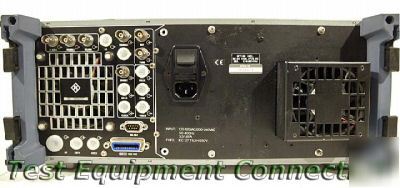

* Rear connectors for RF & LF
* No ext modulation & data source
Performance Characteristics
* Frequency Resolution 0.1 Hz
* Frequency Switching Time 10 ms
* Time base stability 0.000001 /yr
* Minimum Output Power -144 dBm
* Maximum Output Power 13 dBm
* Minimum Single-Side-Band Noise -140 dBc/Hz
* Maximum Single-Side-Band Noise -120 dBc/Hz
* Non-harmonics (noise) -80 dBc
* External Modulation Inputs(Types) No
Programmability/Connectivity
* User Interface Proprietary
* Ports to Peripheral Devices IEEE488,RS232
* UL Compliance Not compliant
* Input Power Universal (Auto Sense and Switch)
Item Includes a 30 Day Warranty
Am Aug-17-07 hat der Verkäufer die folgenden Angaben hinzugefügt:
For any questions on pricing or availability please email or call: 1-(***)-615-8378 Ext. 174 For Technical questions, please email through this listing.
