TC7662 switching voltage doubler, inverter ic (X4)
Get the voltages you need in low-cell-count battery powered projects.
Converts a +3V to +18V input to a corresponding -3V to -18V output using only two low cost capacitors. 40 mA output current. Get the voltages you need to power OpAmps, LCD's, and other parts from low-cell-count battery sources.
- 97% Power conversion efficiency
- Can combine to get desired voltage/current from battery powered circuits.
Can obtain the following functions (see data sheet):
VOLTAGE DOUBLER provides twice the input voltage
SPLITTING a supply in 2 halves: Positive and negative rails
VOLTAGE INVERTER provides an equal and negative voltage to the input voltage
PARALLELLING of devices increases output current beyond 40 mA
CASCADING devices multiplies output voltage.
All circuits described in data sheet
US: $3.75 Canada: $4.50 International: $5.50 Parcel Post.
option is NOT FAST, and may experience delays that are not under seller's control. In choosing Parcel Post S&H option you agree that you have no time constraints, and you do not hold seller responsible for any transit delays.
2-nd item: saves 50% of its S&H
items 3, 4: each saves 60% off their S&H
items 5, 6, 7: each saves 70% off their S&H
items 8 and higher: save 80% off their S&H
Items are ordered highest S&H amount first.
Be sure to add me to your favorites list!

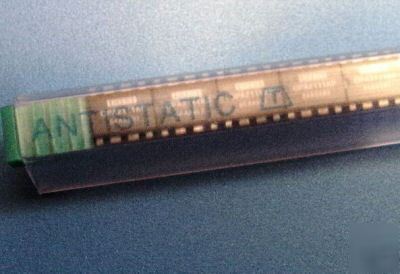

stock photo may show different part number
