> 0.03UF at 630V tubular axial film capacitors : qty=26

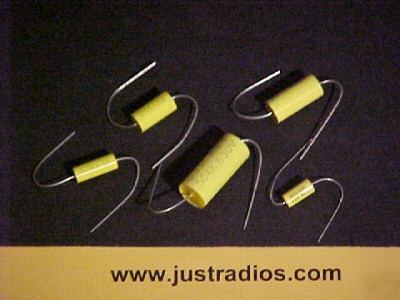

0.03UF at 630V tubular axial film capacitors : qty=26
* ...Always a Money Back Guarantee
Capacitor Features and Specifications:axial_capacitors
* Highest quality MET Metallized Polyester Film Construction.
* Tubular body, wrapped with polyester film tape and ends sealed with epoxy resin.
* Highly stable and reliable with "self-healing" property.
* Long copper-ply 1 7/8" (48mm) axial leads for easy "under chassis" installation.
* High moisture resistance and space saving compact size body.
* Operating temperature range:-40 to +85C
* Capacitance tolerance +/- 10%.
* Rated Voltage: DC 630 Volts
* Testing Voltage: 160% of rated voltage for 60 seccond ie over 1000 volts for 1 minute.
* Capacitance Range: Available in "hard to find" pre WWII tube radio sizes 0.01 MDF thru 2.0 MFD (for under 0.01 MFD our Polypropylene capacitors are recommended)
* Dissipation Factor at 1KHz =< 1%
* Insulation Resistance(min) C=<0.33,RV=<100V:15000Mohm ; C>0.33,RV=<100V:5000Mohm.uF ; C=<0.33,RV>100V:30000Mohm ; C>0.33,RV>100V:10000Mohm.uF
* Excellent replacement for paper/wax capacitors in tube radios.
* Excellent reputation in use for DC blocking, coupling, filtering and by-pass
* Ideal for tube audio/radios/amps, telecommunications equipment, industrial instruments, electronic equipment and other general purposes.
* ISO 9001 & 9002 certified.
schematic_diagrams Capacitors & Schematics
Name & Address: David Cantelon, 6 Ferncrest Gate, Scarborough, Ontario, Canada, M1W 1C2
