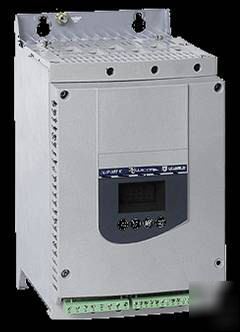

Altistart 48 telemecanique softstart ATS48D38
Brand new Altistart 48 Telemecanique Softstart
Capacity: 38 amps (-hp at 230V or 25hp at 460V)
- Enclosure NEMA I, NEMA 4X, etc.
- Disconnect with fuses, ventilation, controls, etc.
Altistart 48 offers you the benefits of its patented Torque Control System (TCS). Ready for immediate start-up, with simplified wiring and extended communication functions, it can be integrated at the heart of your applications in complete simplicity.
* Fans and high inertia machines
Soft start-soft stop units for 3-phase asynchronous motors from 4 to 1,200 kW
230... 415 V / 208... 690 V - 50/60 Hz
* Starting and stopping of the machine by the Altistart 48 torque control system (TCS patent: Torque Control System)
* Thermal protection of the motor
* Protection of the machine: underload and overload with adjustable threshold and times, locked rotor, control of the direction of rotation
* Factory set for immediate start-up
* Simplified customization of settings using built-in display or the PowerSuite software
* Control of starter bypass contactor to prevent heat dissipation
* Dual configuration (2 motors)
* Numerous configurable inputs/outputs
* Cascaded starting and deceleration of a number of motors
* Modbus Integrated, FIPIO, Profibus DP, DeviceNet, Ethernet
