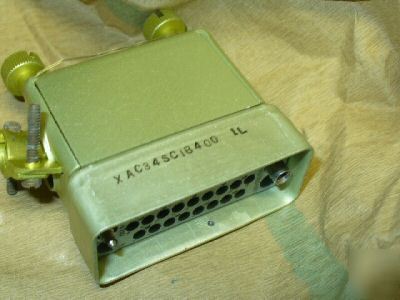

Connector body,plug,electrical

BODY STYLE - 17A HOOD, SIDE OPENING W/CLAMP
OVERALL LENGTH - 2.422 INCHES NOMINAL
OVERALL HEIGHT - 2.484 INCHES NOMINAL
OVERALL WIDTH - 0.875 INCHES NOMINAL
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.138 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.656 INCHES NOMINAL
SHELL SURFACE TREATMENT - ANODIZE
POLARIZATION METHOD - JACKSCREW AND SHELL
SHELL GUIDE TYPE AND LOCATION DESIGNATOR - B PIN
CONTACT POSITION ARRANGEMENT STYLE - BLAR 34 SINGLE MATING END
INSERT MATERIAL - PLASTIC DIALLYL PHTHALATE GLASS FILLED SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - MIL-M-14,TYPE SDG-F MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
ENVIRONMENTAL PROTECTION - HUMIDITY RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT
III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
(NON-CORE DATA) JACKSCREW TYPE AND LOCATION - FEMALE LEFT-HAND AND MALE RIGHT-HAND
(NON-CORE DATA) MISSING CONTACT TYPE AND QUANTITY - 34 ROUND SOCKET
