Vacuubrand vacuum gauge vap 5, pirani,120V ~no ~
Vacuubrand Vacuum gauge VAP 5, Pirani,120V ~NO RESERVE~

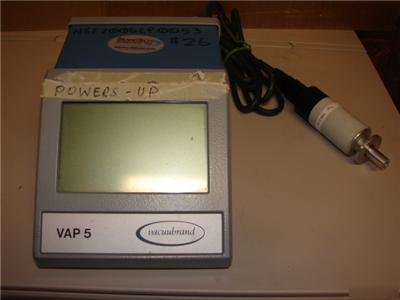

Vacuubrand Vacuum gauge VAP 5, Pirani,120V. This unit is in good working condition comes as pictured. In good working used condition. MSRP: $750.00
The PIRANI vacuum gauge VAP 5 is a fully electronic instrument based on thermal conductivity.
The easy use and the combined digital/analogue display, the fast trend indication and precise
read out make the VAP 5 a very versatile vacuum gauge. The vacuum range of the VAP 5 is from
atmosphere to 10-3 mbar. The VAP 5 is a desk top unit but can also be easily mounted to a
standard lab support system using the included mounting rod.
Measuring range 1000 - 10-3 mbar (hPa), 750 - 10-3 Torr
Measuring principle PIRANI thermal conductivity
Uncertainty of measurement +/- 10% of the indicated value within 100 - 10-2 mbar
(after proper zero and atmospheric point setting and at constant temp.)
Vacuum connection small flange NW 10/nozzle NW 8
Ambient temperature range (operation) + 10°C to + 40°C
Ambient temperature range (storage) - 10°C to + 60°C
Mains supply 230 V ~ +/- 10% 50-60 Hz or 100-120 V ~ 50-60 Hz
Dimensions (L x W x H) 197 x 87 x 132 mm
ORDERING INFORMATION VAP 5-Set
230 V ~ 50-60 Hz plug CEE 68 28 58
230 V ~ 50-60 Hz plug CH 68 28 81
230 V ~ 50-60 Hz plug UK 68 28 80
100-120 V ~ 50-60 Hz plug US 68 28 59
Items supplied: Vacuum gauge with on/off switch, gauge head VSP 5, measuring cable, mains cable with plug, mounting
rod and instructions for use.
230 V ~ 50-60 Hz plug CEE 68 28 50
100-120 V ~ 50-60 Hz plug US 68 28 55
Items supplied: Vacuum gauge only.
Measuring cable, 2 m 68 28 40
DKD calibration with first delivery 90 02 14
analogue and digital vacuum display:
clear trend indication; easy to read, precise read out
fully electronic instrument, no mechanical system
user selectable pressure units (Torr, mbar, hPa),
digital adjustment, fault indication
separate gauge head: flexible positioning of gauge;
screened cable, mounting rod
low electromagnetic radiation: metal housing,
radio frequency interference filter for protection of
sensitive nearby instruments, high immunity from
Please email with any questions. ****@aol.com
* LOOK AT PICTURES FOR INFO!
This is not a rugulated item!
