Red lion control part#LIBT2E00 4094

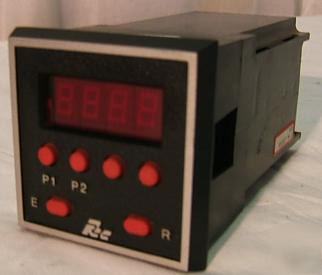

Red Lion Control Part No. LIBT2E00 4094
This item is used. The information below is from the manufacturors website.
4-digit, 0.5" (12.7 mm) high LCD display.
4-digit, 0.4" (10.2 mm) high LED display.
AC Operation: 115/230 VAC (±10%), 50/60 Hz, 6 VA (LCD) or 9 VA
DC Operation: 11 to 14 VDC @ 0.2A max (LCD) or 0.3 A max (LED).
3. SENSOR POWER: 10 to 16 VDC @ 150 mA.
4. RUN INPUT: Can accept switch contact closure and NPN Open Collector
outputs and similar types of current sinking inputs. VIL = 1 V max., internally
pulled up to 5 VDC through a 10 KΩ resistor (ISNK = 0.5 mA). Response
time = 5 msec to 15 msec. (These units operate with VCM [E-H] modules.)
Remote Reset: Active low (VIL = 1 V max.), internally pulled up to 5 VDC
through a 10 KΩ resistor (ISNK = 0.5 mA). Response time = 10 msec. A
low will reset the unit and deactivate the outputs.
Program Disable: Active low (VIL = 0.5 V max.), internally pulled up to 5
VDC through a 10 KΩ resistor (ISNK = 0.5 mA). A low will inhibit the
changing of presets and timed outputs, as well as the testing of outputs in
Solid-State: Current sinking NPN open collector transistors. ISNK = 100 mA
max. VOH = 30 VDC max. (Internal Zener diode protection). One solidstate
output for each preset level. VOL = 1 VDC max. @ 100 mA.
Relay(s): Form C contacts max. rating 5 amps @ 120/240 VAC, 28 VDC
(resistive load), 1/8 H.P. @ 120 VAC (inductive load). The operate time is
5 msec nominal and the release time is 3 msec nominal.
Relay Life Expectancy: 100,000 cycles at max. rating. (As load level
decreases, life expectancy increases.)
Programmable Timed Output: The timed output can be programmed from
0.01 sec to 99.99 sec, ±0.01% - 10 msec. The timed output is set for 0.1
8. MEMORY RETENTION: The Libra Timers have a “no power E2PROM”
which maintains all information when the input power is removed. The life
expectancy of this device is at least 10,000 power down cycles and length of
memory retention for a single power down can be as long as 10 years.
9. INPUT, POWER, AND OUTPUT CONNECTIONS: There are two plugin,
compression type, barrier strips located at the rear of the unit. These strips
can be removed from the rear of the unit for ease of wiring. After wiring is
complete, the connector can be plugged back into the unit.
10. CERTIFICATIONS AND COMPLIANCES:
Type 4 Indoor Enclosure rating (Face only), UL50
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC529
Please contact me with any questions, I have more photos and info if needed.
