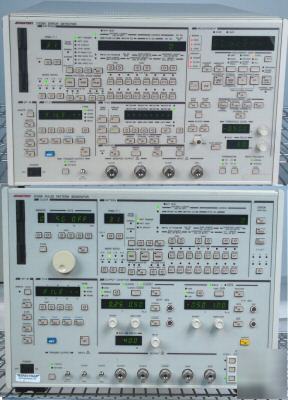

> Advantest D3186 pulse pattern gen + D3286 error detect.
Advantest D3186 pulse pattern gen + D3286 error detect.
Description: PULSE PATTERN GENERATOR
Advantest D3286 - ERROR RATE DETECTOR features: 12 GB/S ERROR RATE DETECTOR
SDH/SONET frame synchronization suitable for system evaluation
Error detection with area specification effective for SDH frame and ATM cell measurement
Burst data measurement effective for loop-back test
Auto search function which adjusts the most appropriate timing and voltage
Monitor output of data and clock
FD drive for storing measurement results and setup data
GUI environment realizing easy and legible operating environment Advantest D3186 Specifications:
* Excellent waveform quality
* 8M-bit memory, 31 stages for PRBS
* Multi-channel output : 2 data channels, 3 clock channels, and 7 sub-rate channels
* Cross point variable for output waveform
* 3 Vp-p outputs, effective for EA modulators, etc. (option)
Description: ERROR RATE DETECTOR
Advantest D3286 Specifications:
* SDH/SONET frame synchronization suitable for system evaluation
* Error detection with area specification effective for SDH frame and ATM cell measurement
* Burst data measurement effective for loop-back test
* Auto search function which adjusts the most appropriate timing and voltage
* Monitor output of data and clock
* FD drive for storing measurement results and setup data
* GUI environment realizing easy and legible operating environment
* 72-12.5 UPGRADE; DATA RATE UPGRADE FOR MAINFRAME (12.5 GBPS), ADV
* Operation Manual - FOE-8324233D01 Qty. 1
* Cable SMA (m) to SMA (m) Qty. 1
* All units power on without error.
* All units are supplied exactly as shown.
* All equipment is packed with Instapack® foam-in-place.
* Bank Transfer is required for all international orders (carries a $25.00 fee).
* Certified Check, Personal Check (allow 10 days after receipt for personal checks to clear).
