Lot 10 alco TPC11 submin red pushbutton switch spst no
Only FIVE lots of TEN each remaining!
We just bought out a long time Phoenix surplus electronics distributor. All of these parts are absolutely "as new", most are aerospace quality, and most are leading traditional American brands. The bulk of the items are unused production overstock. Offered items are not ROHS compatible or compliant.

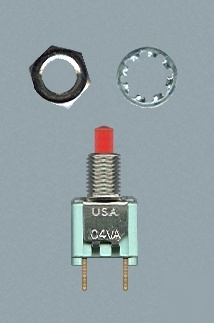

Offered here are lots of twelve genuine Alco (now Tyco) ultra tiny subminiature SPST normally open pushbutton switches. These super quality and current production units sell for nearly $10 each at major distributors.
#10 threaded barrel type (hardware included) can be panel mounted or direct solders to thru hole pc board on 0.2 inch centers. Switch body measures 1/8 x 1/4 x 5/16. Red pushbutton is 1/8 inch diameter.
Normally open contacts. Part number TPC11.
Contacts are specially gold plated for ultra reliable dry switching use. Max recommended contact energy is 0.4 va, making these suitable for logic level input, microprocessor reset, etc. Not recommended for high current or higher voltage switching.
You can click here to reach the Alco Tyco web site.
You can click here to reach an Alco TPC11 summary data page.
You can click here for the Alco TPC11 detailed specifications.
Two gold flashed terminals are intended for thru-hole printed circuit mounting.
Guaranteed usable. Switches received in as new and apparently unused in "as new" but loose distributor stock. Switches may include minor storage cosmetics.
