Mean well power supply d-120B 5V-24V cctv, radio etc.

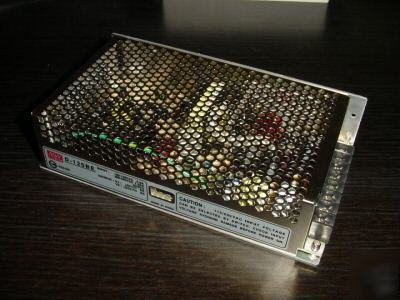

Mean Well (MeanWell) D-120B Dual Output, AC DC Switching Power Supply
* Universal AC input selectable by switch
* Approvals: UL / CUL / TUV / CB / CE
* Cooling by free air convection
* 100% full load burn-in test
* AC input voltage range: 88 - 132VAC; 176 - 264VDC
* DC adjustment range: CH1: -5~+10% rated output voltage
* Over load protection: 105% - 135% shut off, AC recycle to re-start
* Over voltage protection: CH1: 115% - 135% rated output voltage
* Setup, rise, hold up time: 200ms, 50ms, 20ms at full load and 230VAC
* Withstand voltage: I/P - O/P; 3KVAC, I/P - FG; 1.5KVAC; 1 minute
* Working temperature: 0 - 50°C 100%, -10°C @ 80%, 60°C @ 40% load
* Safety standards: UL1950, TUV EN60950 approved
* EMC standards: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204
* Connection: 8P / 9.5mm pitch terminal block
* Meanwell D-120 Specifications and Footprint
