44-sl / HDL44-sl-b / HDL44 / hd d-sub right angle pcb
Now over 1,500 items in our Store!

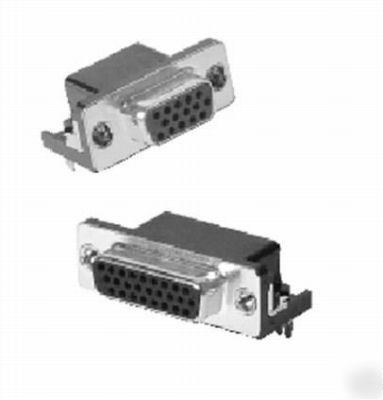

Adam Tech Right Angle PCB High Density D-Sub connectors are a popular interface for many I/O applications. Offered in 15, 26, 44, 62 and 78 positions they are a good choice for a low cost industry standard hi density connection. Adam Tech connectors are manufactured with precision stamped contacts offering a choice of contact plating and a wide selection of mating and mounting options.
* High Density in standard size shell
* Industry standard compatibility
* Durable metal shell design
* Precision formed bifurcated contacts
* Variety of Mating and mounting options
Adam Tech high density D-Subminiatures and all industry standard high density D-Subminiature connectors.
* Insulator: PBT, 30% glass reinforced, rated UL94V-0
* Insulator Colors: HDL Series: Black HDVG Series: Blue
* Shell: Steel, Tin or Zinc plated
* Hardware: Brass, Nickel plated
µin Optional) over Nickel underplate.
* Operating voltage: 250V AC / DC max.
* Current rating: 5 Amps max.
* Insulation resistance: 5000 M½ min.
* Dielectric withstanding voltage: 1000V AC for 1 minute
* Insertion force: 0.75 lbs max
* Extraction force: 0.44 lbs min
* Operating temperature: -65°C to +125°C
* UL Recognized File No. E224053
* CSA Certified File No. LR1578596
