20-soic to dip prototype adapter/converter/FD2720

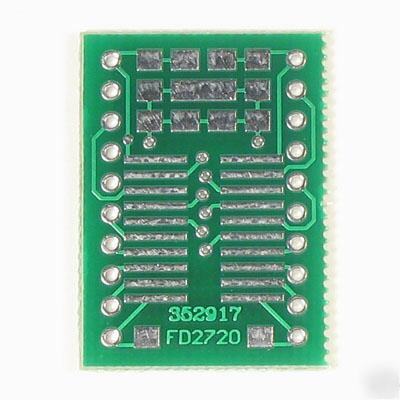

FD2720 20-SOIC to .600 DIP Adapter/Prototype Board
Accepts 14 to 20-pin SOIC (0.05in/1.27mm pitch)
For prototype and development, just add parts and plug in
Foil Modification Instructions:
* Cut foil with a sharp razor
* New mounting zone is created
* Solder component to new mounting zone
* Board Material: High quality 0.062 in. thick FR-4, Glass Epoxy or equivalent.
* Circuit: 1 oz copper with solder coated pads both sides.
* DIP: 20 pins, 600 mils, 0.1 in pitch.
