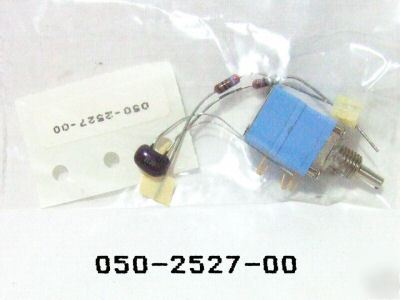

Tektronix 050-2527-00 R685 S685 replacement 311-1080-00
TEKTRONIX R685/S685 (LUMINANCE GAIN) REPLACEMENT
* 283-0599-00 CAP, MICA:98PF, 5%, 500V (CAPACITOR)
* 311-1080-00 RES, VAR, NONWW: 500OHM, 0.5W, W/SW (POT SWITCH)
* 321-0175-00 RES, FILM:649 OHM, 1%, 0.125W (RESISTOR)
* 321-0137-00 RES, FILM:261 OHM, 1%, 0.125W (RESISTOR)
For use with the following instruments:
"R685/S685 (luminance gain is no longer available in the present pinout configuration. Installation of the new Gain control provided in this kit, necessitates the replacement (due to additional lead length requirements) of some interconnecting components."
"NOTE: if this kit has been installed or the pot is of the new design, install R685/S685 as a direct replacement. Use the additional parts (provided in the kit), as necessary, to facilitate installation."
This replacement kit is new and has never been used.
Overall physical condition: New
