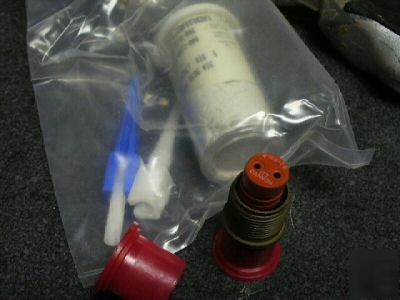

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 1.135 INCHES MAXIMUM
OVERALL DIAMETER - 0.692 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - SPRING FRICTION
THREADED DEVICE TYPE - BACK SHELL
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 0.625 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ACAB 12S-3 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 2 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF
III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.002 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
