Mks baratron tylan vacuum pressure gauge meter readout
Nice Capacitance Diaphragm Pressure Gauge Transducer
Power Supply - Readout Controller, Model 80-6B,
by Millipore Tylan Vacuum General!
1. Condition: in Excellent Working and Cosmetic Conditions!!!

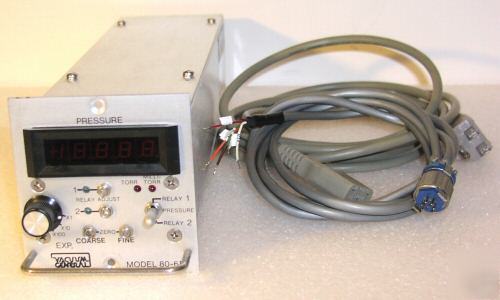

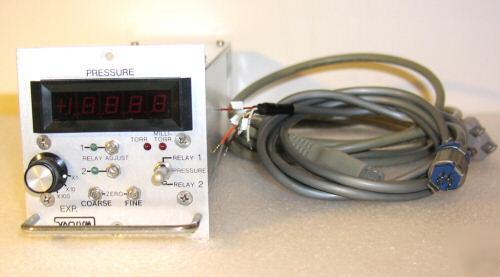

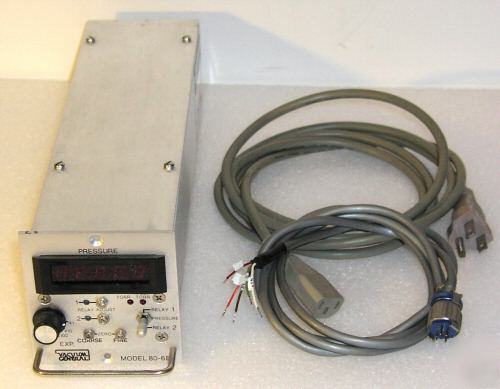

2. Lot Includes: one compact controller with one AC power cable and one gauge cable, exactly as shown!

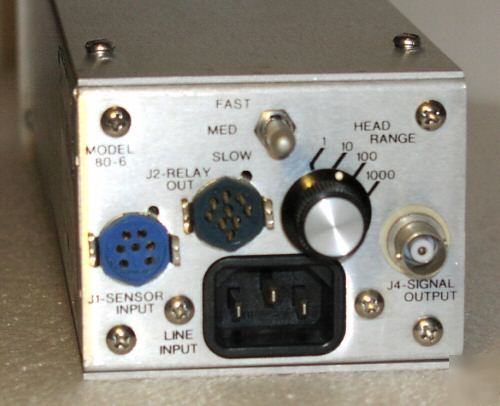

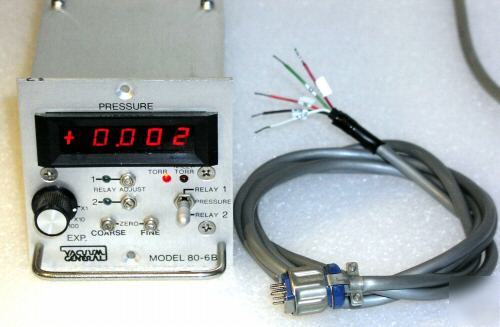

3. Description: this is a nice Millipore Tylan Vacuum General 80-6B type readout controller. This controller is a compact AC powered module, which provides: power supplying, signal conditioning, range-changing, zeroing, above set-point triggering, and readout capabilities for a capacitance diaphragm absolute pressure/vacuum manometer sensor transducer. The controller will work with transducers by such companies as the MKS Instruments Baratron, BOC Edwards Barocell, Leybold Inficon, Perkin-Elmer (Physical Instruments), Ulvac, Millipore Celerity and many others brands. The controller is equipped with a bright 4 1/2 digits LED readout, an extended sensitivity range (x1, x10, and x100) switch, two zero level potentiometers, two independent set point relay adjustment potentiometers, and a relay selector switch on its front panel. On the rear panel there is a range selector switch, an AC in port, a sensor in port, a relay out port, a signal output BNC port (0-10 VDC), and a rate of indication refreshing switch. The sensor input port contains two stabilized +15VDC and -15VDC (each is capable of providing up to 220 mA of current) electric power supply lines, and a 0-10VDC (0-5VDC) signal return line. The controller measures: 3 3/8 x 3 1/2 x 14", and weights about 4 lb. This controller was manufactured in the United States.
Pictures below represent the actual item!
