New diodes S2M-13 rectifier - qty 100-
Vishay Diodes S2M-13 Rectifier - Qty 100- NEW
RECTIFIER GPP SMD 1000V 1.5A SMC
Discrete Semiconductor Products
@TA = 25°C unless otherwise specified
Notes: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
2. Thermal Resistance Junction to Terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pads as heat sink.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7.
Glass Passivated Die Construction
Low Forward Voltage Drop and High Current Capability
Surge Overload Rating to 50A Peak
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant (Note 3)
Case Material: Molded Plastic. UL Flammability
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Marking: Type Number, See Page 2
Ordering Information: See Page 2
Approx. Weight: SMA 0.064 grams

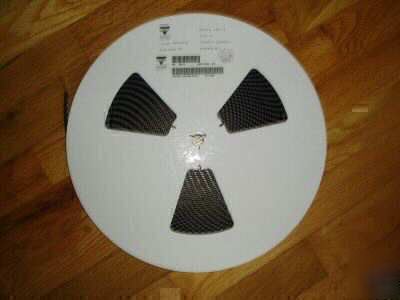

The picture show a whole reel of these items, but I have decided to sell just 100 at a time to have the price be available to more people. If you would like more than 100 please let me know.
