New brand compact comtronic limit sensor model# wscl 3

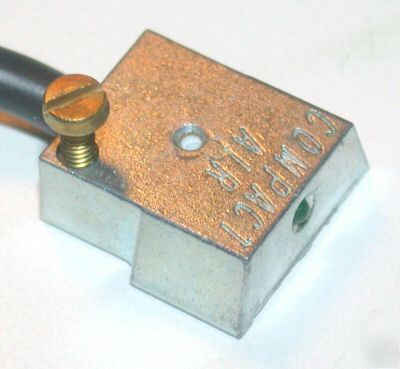

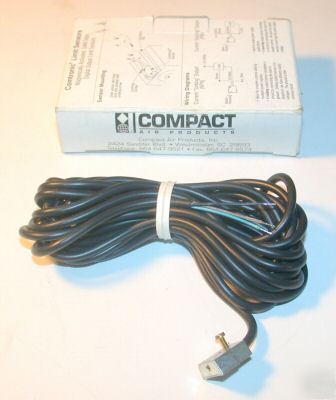

BRAND NEW COMPACT COMTRONIC LIMIT SENSOR MODEL# WSCL 3
* Operating Voltage: 5-24 VDC.
* Current Consumption: ON: 16mA (24V) / OFF: 7mA (24V).
* Switching Current: 100mA Max.
* Voltage Drop: 1.5V Max @ 100mA.
* Operating Frequency: 1 KHz Max.
* Switch Logie: Sinking, Normally Open.
* Operating Temperature: 0°C to 70°C.
* Circuit Protection: Reverse Polarity / Surge Absorber.
* Environmental Certifications: IEC Standard IP67, NEMA 6P.
* Wire Type: High flex, 24 AWG / 105 Strand Primary.
* Housing Material: Zinc Diecast.
* Housing Color Code: Black.
* Shock Resistance: 20G Max.
* Vibration Strength: 9G Max.
http:// /pdf/sensors.pdf
I will fully guarantee this item.
Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern).
