New lcd display 8X2 clone HD44780 yellow/green yj-802A

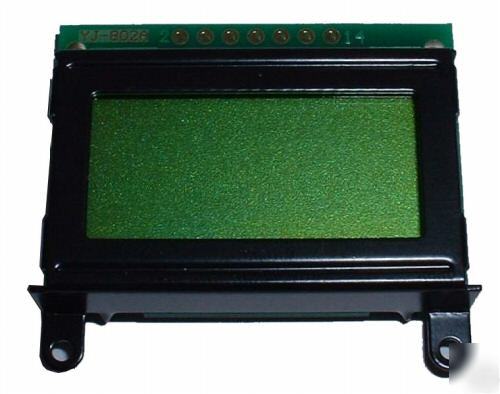

LCD DISPLAY 8X2 CLONE HD44780 Yellow/Green YJ-802A
* Wide viewing angle and high contrast.
* Industry standard HD44780 equivalent LCD controller built-in.
* Don't need seperate power supply for backlight.
* Supported 4 or 8 bit parallel interface.
* Display Format: 8 Characters X 2 Lines
* Drive Method: 1/16 Duty , 1/5 Bias
* LCD Type: STN Yellow Green
* Driving voltage: single +5V supply.
* Viewing direction: 6 o'clock
* Operating Temperature: -20?~+60?
* Module size(W x H x T): 40 mm X 35.5 mm X 12 mm
* View area(W x H): 30 mm X 14 mm
* Black Metal Bezel (W x H): 38 mm X 23 mm
* Each character consist of 5x8 dots
Below you will find some usefull links
A software(Freeware) use to show different types of information
How to control a HD44780-based Character-LCD
Please email with any questions.
