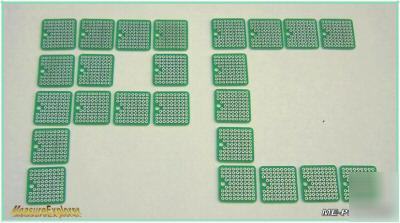

24 1" square proto prototype circuit pcb board kit
You get 24 square single copper layer non-plated through hole prototype boards!
We are looking for physical store carrier for this item
These are 1 inch square single copper layer non-plated through hole boards. Actually this little board can never finish any complete electronic system, however, I am pretty sure you often have a requirement of building a simple circuitry in front of or after your large system or instrument, or in the middle of its signal processing. For example you want a signal buffer, you want a impedance maching circuit, you want a pre-amplifier, you want a filter, you want a different voltage regulator, you want a simple logic, or you want a power output. These little boards give you convenient solution to solve these problems in a few minutes.
Single layer non-plated thru-hole
Base material: FR-4, 0.062 inch thickness
Solder finishing on bare copper
diameter 0.039 inch, spacing 0.1 inch total pin number 464
Copper pattern: every 3 pin pads are connected together
1 positioning 4-40 (Ø3mm) screw holes
Mechanically be compatible to any other MeasureExplorer prototype boards for building large prototyping system
