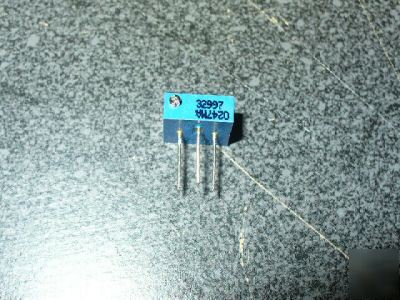

Resistor,variable,wire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 5.000 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -5.0 TO 5.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
MAXIMUM STARTING TORQUE - 5.00 INCH-OUNCES
MAXIMUM RUNNING TORQUE - 5.00 INCH-OUNCES
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -50.0 TO 50.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.75 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY LENGTH - 0.375 INCHES NOMINAL
BODY WIDTH - 0.182 INCHES NOMINAL
BODY HEIGHT - 0.375 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.075 INCHES NOMINAL
SHAFT LENGTH - 0.080 INCHES MAXIMUM
TERMINAL TYPE AND QUANTITY - 3 PIN
CENTER TO CENTER DISTANCE BETWEEN TERMINALS - 0.200 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL - 0.100 INCHES NOMINAL
TERMINAL LENGTH - 0.300 INCHES MINIMUM
TERMINAL LOCATION - LEFT ADJACENT SIDE TWO ROWS
CENTER TO CENTER DISTANCE BETWEEN TERMINAL ROWS - 0.100 INCHES NOMINAL
TEST DATA DOCUMENT - 81349-MIL-R-39015/3 SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39015/3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M39015-3-009PM
