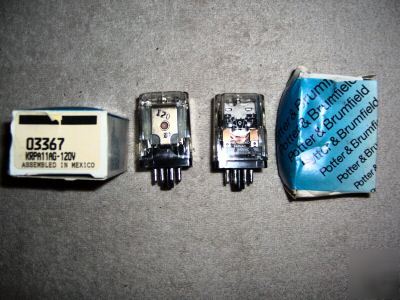

Potter & brumfield industrial general purpose relays
Industrial Relays (General Purpose)
* Contact Arrangement = 2 Form C, DPDT, 2 C/O
* Contact Current Rating = 10 Amps.
* Monostable Coil Magnetic System
* Termination Type = 8 Pin Octal-Style Plug
* Contact Current Rating (Amps.) = 10
* Coil Resistance (Ω) = 2250
* Coil Power, Nominal (VA) = 2.00
* FCC Part 68 Isolation = No
* Contact Material = Silver Cadmium Oxide
* Approx. Dimensions (L x W x H) (mm [in]) = 48.80 x 37.30 x 34.90 [1.922 x 1.469 x 1.375]
* Pin Configuration = Industry Standard
* Approved Standards = UL Recognized, CSA Certified
Configuration Related Features:
* Contact Arrangement = 2 Form C, DPDT, 2 C/O
* Coil Magnetic System = Monostable
* Coil Suppression Diode = Without
* Coil Selection Criteria = Nominal Voltage
* RoHS/ELV Compliance = RoHS/Not ELV Compliant
* Lead Free Solder Processes = Not relevant for lead free process
* RoHS/ELV Compliance History = Converted to comply with RoHS not ELV directives
