New vectron fx-104 saw frequency translator 166.6286MHZ

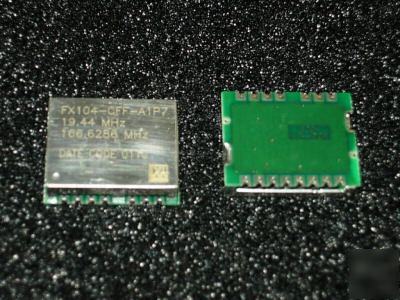

Vectron FX-104-CFF-A1P7 SAW Frequency Translator
* Output frequencies up to 777.60 MHz
* Jitter Generation OC-192 compliant
* Jitter transfer per GR-253-CORE
* Single 5.0 or 3.3 Vdc supply
* Locked to specified Input frequency, e.g. 8 kHz
* 1" x 0.8" x 0.25", Surface Mount (FR4 base)
* FEC (Forward Error Correction)
Vectron's FX-104 is a SAW based frequency translator which is used to translate any input frequency such as 8 kHz, 1.544 MHz, 2.048 MHz, 19.440 MHz etc. to any specific frequency from 170 to 777.6 MHz. The input frequency does not have to be a 50/50% duty cycle and as an example can be an 8 kHz signal with a logic high "on time" of only 1us, such as a BITS clock. The FX-104 also has the ability to translate up to any of 1 to 4 different input frequencies to one common output frequency, such as input frequencies of 8 kHz and 1.544 MHz and 19.44 MHz and any other frequency between 333 Hz and 170 MHz translating them to any specific output frequency from 170 MHz to 777.600 MHz.
* 10 day DOA Guarantee by BoteQ.com
* Local pick up is not offered.
