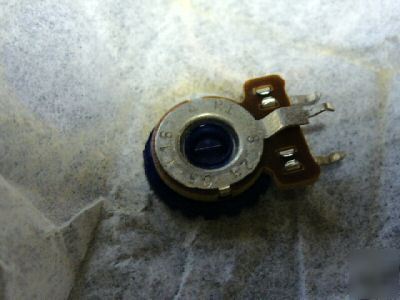

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 3.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -20.0 TO 20.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.25 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 40.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 85.0 SINGLE SECTION
BODY LENGTH - 0.156 INCHES NOMINAL
BODY WIDTH - 0.594 INCHES NOMINAL
BODY HEIGHT - 0.735 INCHES NOMINAL
ACTUATOR TYPE - FLUSH DRIVE WITH SLOT-HOLE
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 260.0 NOMINAL
ACTUATOR TRAVEL CONTROL FEATURE - STOPS
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION - 260.0 NOMINAL
TERMINAL TYPE AND QUANTITY - 3 TAB, SOLDER LUG
TERMINAL LOCATION - LOWER ADJACENT SIDE SINGLE ROW
RELIABILITY INDICATOR - NOT ESTABLISHED
