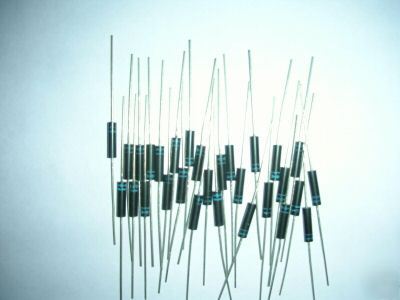

(20)high voltage rectifier diodes 16KV 5MA 100NS
Maximum working peak reverse Voltage: 16kV
Maximum average rectified output current: 5mA
Maximum single cycle surge current: 5A
Maximum peak forward voltage: 40V
Maximum D.C. reverse current: 2.0uA(Ta=25℃) , 10.0uA(Ta=100℃)
Maximum reverse recovery time: 100nS
Maximum virtual junction capacit:10.0pF
The dimension is 3mm in diameter and 12mm in length.
Manufactured by: LEADSUN COMPANY , ANSHAN, CHINA
If you need other kinds of diode, please contact with us.
Contact information: ****@yishmail.com
