> New 24 v mabuchi motor with pulley - rs-445PA - brand
New 24 v mabuchi motor with pulley - rs-445PA - brand
24 V Mabuchi Motor with Pulley - Brand New - Low S/H
* Brand new motor manufactured by Mabuchi
* Model number: RS-445PA-17145
* Please click this LINK to see the data sheet (PDF - 68 kB)
* Speed at maximum efficiency: 4730 RPM
* Current at maximum efficiency: .41 A
* Full load torque output: 12.3 mNm
* Stall torque output: 72.1 mNm
* Motor has a shaft with dimensions of: .33" L x .12" Diameter
* The .32" Diameter single serrated pulley can be removed from the shaft
* Motor dimensions: 2.2" L x 1.25" Diameter
* Motor features 2 threaded mounting holes
* Comes with 2 solder lugs for power connection

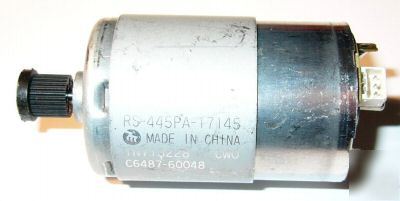

For closer detail of the motor, please click on the pictures below.
