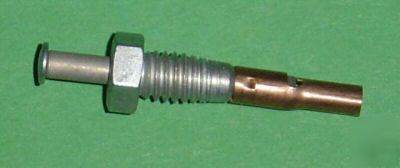

Cole hersee door momentary switch
* Cole Hersee part number 9251
* On When Plunger Depressed, Spring Return To Off (Ground)
* 5/16" - 18 self-tapping thread
* Mounting stem 1/2" (12.7mm) long
* Plunger 7/16" (11.1 mm) long
* Operates with 35oz. minimum pressure
* Electrical Rating 5amp. @ 12V DC
* One female bullet terminal
* Self-grounding in metal panels
* Replaces: Chrysler 1571542, 1594751, 1688514, 1838957, GMC 4882978, 6276718 Motorcraft SW-690 (one terminal application)
