> Murata smd inductor LQW1608AR12G 120NH 2% 4000PCS reel
Murata smd inductor LQW1608AR12G 120NH 2% 4000PCS reel
120nH,+-2%,100MHz,180mA,1.3ohm

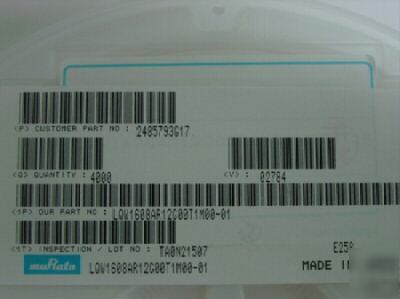

4,000 pcs. on a reel. (Full Reel)
For DATA SHEET Please link to http:// /
1. Broad range of inductance(2.2nH to 470nH) with E24
2. Horizontal winding structure enables tight
inductance tolerance(+-0.2nH, +-2%). Stable circuit
3. The subminiature dimensions (1.6x0.8mm) allow high
4. The high self resonant frequency realizes high-Q
value and stable inductance at high frequency.
5. Low DC resistance design is ideal for low loss,
high output and low power consumption.
6. Resin-coated surface enables excellent mounting.
- High frequency circuits of mobile phones such as
- Mobile phones as GSM, CDMA, PDC etc.
- High frequency circuits in general
LQW18A_10(High-Q/Low DC Resistance type)
Lower DC Resistance approximately by 50% than current
type. Higher Q by 10%, Higher rated current by 20%.
Cellular phone and Base station.
Higher Q - Matching circuit for antenna, SAWFIL.
Lower Rdc - Choke coil for IF, RF circuit like PA.
Equipment with high frequency circuits (Wireless LAN etc.)
* If you have any other money transfer method, please let me know, maybe I will try to use it.
* Extra fees/charges are required if you want to insure your item.
* I will not insure your item unless you notify me for the option.
-All sales comes with dead on arrival warranty. If the item you have ordered is defective, contact us immediately for replacement or refund.
-All sales are considered final after 7 days.
