Milling machine combo motors drivers, power 1160 oz-in
This Package Deal is just made for Mills with table drive screws from 5/8" Diameter to 1" diameter. It is a proven system.

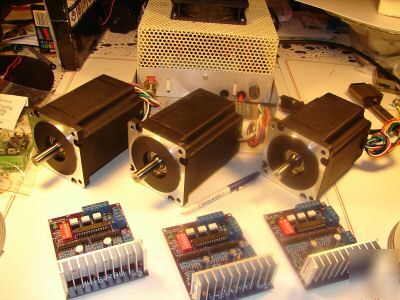

You Get three brand new 1160 oz in stepper motors dual shaft
Three brand new Bipolar Microstepping driver boards.
and A brand New 38 volt 12 amp 400 watt Linear power supply ideal for CNC systems such as this.
Brand New NEMA 34 1160 oz-in stepper motor Includes documentation Specifications: NEMA 34 Suitable for dirving mill tables with 5/8" to 1" drive screws
Dual Shaft Front shaft=1/2" x 1-3/16" with Flat. Back shaft 1/2" dia X 5/8" long with flat 200 steps per revolution 1.8 degrees per step
Bipolar series Volts=6.7, Amps=3.0, Ohms=2.24, Holding torque=8.2 Nm. 0r 1160 oz-in
Bipolar parallel Volts=3.5, Amps=6.0, Ohms=0.58 Holding torque=8.2 Nm. or 1160 oz-in
Unipolar Volts=4.7, Amps= 4.2, Ohms=1.12, Holding torque= 5.8 Nm or 820 oz-in
Body length= 118 mm or4.765" Body Diameter= 85.65 mm or 3.36"
