Dwyer photohelic series 3000 3210 gage/pressure switch

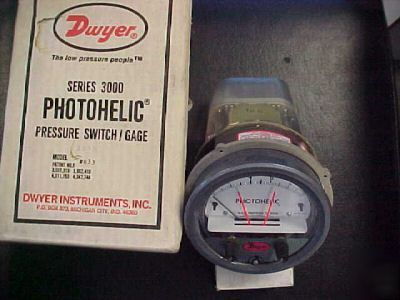

This is a brand new in original box Dwyer series 3000 pressure/switch, gage. Model 3210.
PHYSICAL DATA Ambient Temperature: 20 to 120°F. (-6.7 to 49°C) LOW temperature option available.
Rated Pressure: Photohelic, -20" Hg. to 25 psig (-.67 to 1.7 bar). MP option; 35 psig (2.4 bar), HP option; 80 psig (5.5 bar). 36003S-36010S; 150 psig (10.3 bar). 36020S and higher; 1.5 x full scale pressure. Capsu-Photohellic, -20" Hg. to 500 psig (-.67 to 34.4 bar).
Accuracy: Photohellc, ±2% of full scale at 70°F (21 .1°C). 3% on -0 and 4% on -00 models. Capsu-Photohelic, ±3% of full scale at 70°F (21.1°C). 2% on 43000S models; 4% on 43215, 43220 and 43500. Gage Connections: Photohelic, 1/8" NPTF. Capsu-Photohellc, 1/4" NPTF.
Power Required: 120 VAC, 50/60 Hz Electrical Rating of Relays: 10A @ 120 VAC, 6A @ 240 VAC, 60 Hz res.
Conduit Opening: 3/4" conduit. Finish: Baked, dark gray hammerloid.
Weight: Photohelic, 4 lbs. (1.8 kg).
Use with air or compatible gases only. Capsu-Photohelic, 5 Ibs., 12 OZ. (2.6 kg). Use with air or compatible gases or liquids. Brass case required for water or water based liquids.
