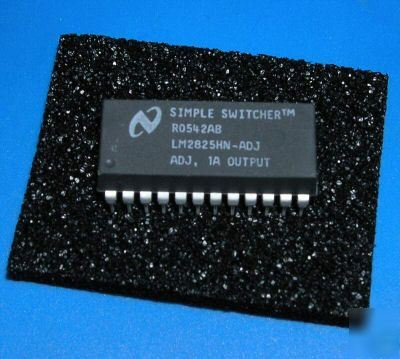

LM2825 -adj complete switching voltage regulator ic (1)
complete Switching Voltage Regulator on a chip
Two adjustable versions: variable 2-8V and variable 7-15 V output (higher voltage part also available)
High efficiency - NO HEATSINK REQUIRED! NO HEAT TO REMOVE!
24 pin DIP package (most pins bunched to same electrical connection)
only 4 connections required: IN, OUT, GND, and Adjust.
(optional pin for shutdown / soft-start can be used if desired) Voltage adjustment made with two resistors. No other external components required for operation.
Excellent line and load regulation.
Thermally and current limit protected.
Check price at Mouser Electronics
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
items 3-5: S&H 80% less than first (or 20% of first)
items 6-10: S&H 90% less than first (or 10% of first)
