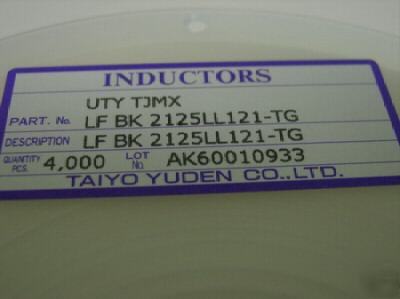

Taiyo yuden ferrite chip beads LFBK2125LL121TG 4000PCS
TAIYO YUDEN LF BK Series Ferrite Chip Beads
4,000 pcs. on a reel. (Full Reel)
For DATA SHEET Please link to http:// /
TAIYO YUDEN LF BK Series Ferrite Chip Beads
FEATURES: Click here to see complete product features
*Internal silver printed layer creates a closed circuit which acts as a magnetic shield minimizing heat generation and crosstalk.
*No need for grounding provides greater circuit design flexibility.
*Several material types and a broad range of impedance values provide noise countermeasures for various applications.
HS : Suppresses the XL component. Helps stop the reduction of the wave-form (digital wave-form overshoot, etc.)
HM : Increases the Z characteristic sharply above 20MHz and is applicable for radiated noise in the 100MHz~300MHz range. Especially effective on video signal lines.
LL : Designed as a noise countermeasure for the 200MHz~500MHz range where the rise of the Z component is in the high frequency area.
LM : Intended for noise suppression around 200MHz. Effectively increases attenuation.
HW : The best material in the BK Series to suppress the XL component and stop the reduction of the wave-form while maintaining attenuation in the high frequency area.
TS : Reduced DC resistance version for noise countermeasures around LSI power supplies.
*High frequency noise countermeasure in personal computers, digital cameras and other information system products. For use on digital product clock lines and general signal lines.
*Radiated noise suppression in computer or printer interfaces and harness connectors.
*Noise suppression in video and other AV products.
*Prevents interference between circuits in cellular phones (PHS, PDC, etc.)
*Due to the closed internal circuit which acts as a magnetic shield, the TS material is extremely effective as a noise filter on LSI power supply lines where downsizing of components is needed.
* If you have any other money transfer method, please let me know, maybe I will try to use it.
* Extra fees/charges are required if you want to insure your item.
* I will not insure your item unless you notify me for the option.
-All sales comes with dead on arrival warranty. If the item you have ordered is defective, contact us immediately for replacement or refund.
-All sales are considered final after 7 days.
