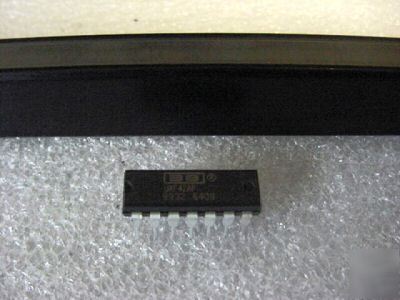

UAF42AP, universal active filter, 14 pin dip
UAF42AP, Universal Active Filter, 14 Pin DIP, Burr Brown/Texas Instruments.
The UAF42 is a universal active filter which can be configured for a wide range of low-pass, high-pass, and band-pass filters. It uses a classical state-variable analog architecture with an inverting amplifier and two integrators. The integrators include on-chip 1000pF capacitors trimmed to 0.5%. This solves one of the most difficult problems of active filter design—obtaining tight tolerance, low-loss capacitors.
