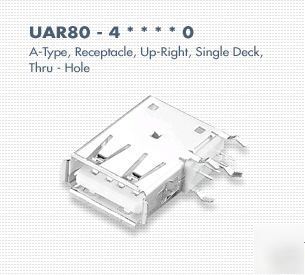

> 100 - usb connectors - a-type, receptacle, up-right,
100 - usb connectors - a-type, receptacle, up-right,
An exact specification drawing can be found at (http:// /acon/connector/pdf/usb/C-UAR80-00-00(H).pdf.
Current: 1A maximum per contact not to exceed 30°C temperature rise
Temperature: -40°C to 60°C storage; 0°C to 40°C operating
Termination resistance: 30m?maximum
Insulation resistance: 1000M?minimum
Dielectric withstanding voltage: 750V AC at sea level
Vibration, random: EIA 364-28 Condition V Test letter A
No discontinuity of 1?s or longer duration
Physical shock: EIA 364-27 Condition H
No discontinuity of 1?s or longer duration
Cable retention: Apply axial load of 25 Newtons to the cable
Cable shall not dislodge frin cable crimp
Thermal shock: EIA 364-32 Test Condition 1
Humidity: EIA 364-31 Method 2 Test Condition A - No physical damage
Temperature life: EIA 364-17 Test Condition 3 Method A - No physical damage
