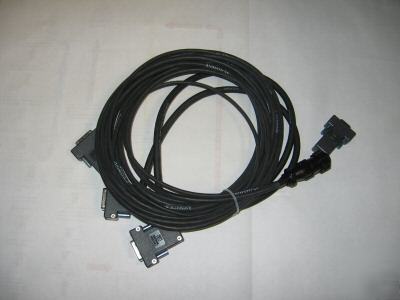

Animatics cable for smart motor, model CBLSM1-14-3-2
Cables for Legend & OEM Series 17, 23 and 34 Series
The CBLSM1-10 is a 10 ft.(3m), Y configuration cable supplying DC power and communications to OEM and Legend SM17, SM23 and SM34 Series SmartMotors. CBLSM1-10 cables are designed with the following connectors: 9 pin female D-sub that is compatible with the serial port of PC's, a 7 pin SmartMotorâ„¢ communications D-sub and a special PS-Series power supply connector..
For special lengths, use the CBLSM1-X part number, where X=length in ft.
For multi-axis, serial/RS232 communication, use the part number CBLSM1-X-Y-Z, whereby X=distance from host motor to motor #1, Y=number of smartmotors in series and Z=distance from smartmotor #1 to smartmotor #2.
For multi-axis, parallel/RS485 communication, use the part number CBLSM2-X-Y-Z, whereby X=distance from host motor to motor #1, Y=number of smartmotors in parallel and Z=distance from smartmotor #1 to smartmotor #2.
Networking between SmartMotors has never been easier now that the Add-A-Motor (CBLSMADD) cable is here. The CBLSMADD cable is a configuration cable that supplies DC power and communications to OEM and Legend 17 and 23 Series Smartmotors. The cable is designed to connect multiple SmartMotors in a daisy-chain configuration for serial operation. Add the suffix -0.3, -1.0, -3.0 or -7.5 for standard lengths of 0.3, 1.0, 3.0 and 7.5 meters, respectively.
