New dwyer model 605-2 1W419 magnehelic transmitter gage

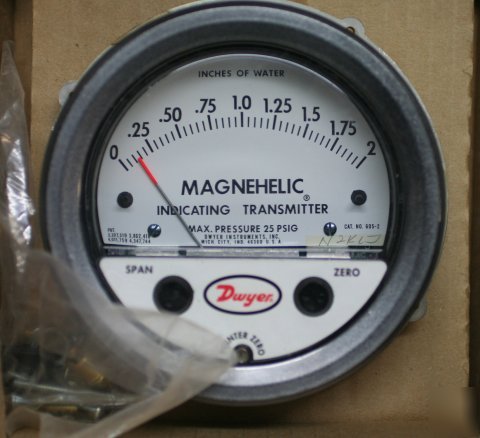

DWYER Model 605-2 1W419 Magnehelic Transmitter Gage NEW
DWYER Model 605-2 1W419 Magnehelic Transmitter Gage NEW
* Service: Air and non-combustible, compatible gases.
* Wetted Materials: Consult factory.
* Stability: ±1% F.S./yr.
* Pressure Limits: max. pressure 5 psi (34.5 kPa)
* Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
* Process Connections: 1/8" female NPT.
* Size: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 2-11/16" (68.3 mm).
* Weight: 1 lb, 12.6 oz (811 g).
TRANSMITTER SPECIFICATIONS
* Accuracy: ±0.5% electrical accuracy, ±2% mechanical accuracy
* Temperature Limits: 20 to 120°F(-6.67 to 48.9°C).
* Compensated Temperature Range: 32 to 120°F (0 to 48.9°C).
* Thermal Effect: ±0.025% F.S./°F (0.045% F.S./°C).
* Power Requirements: 10-35 VDC (2-wire).
* Output Signal: 4 to 20 mA.
* Zero and Span Adjustments: Protected potentiometers.
* Loop Resistance: DC; 0-1250 ohms maximum.
* Current Consumption: DC; 38 mA maximum.
* Electrical Connections: Screw terminal block.
* Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Pressure Range (In. WC) : 0-2.0" WC
Pressure Range Minor Div. : 0.05" WC
Loop Resistance 0 To 1250 Ohms
Output Accuracy : Plus or Minus2% Full Scale
Includes : Span and Zero Adjust Tool and Mounting Hardware Kit
Reliable transmitters provide visual monitoring and electronic control of very low differential pressure.
Pressure connections are 1/8" NPT female high and low pressure taps. 38mADC (maximum) current consumption; 12 to 35VDC power supply. 2-wire, 4 to 20mA output signal. Loop resistance is 0-1250 ohms from 10 to 35VDC. Transmitters include span and zero-adjust tool and mounting hardware.
* Full span output accuracy: Plus or Minus2%
* Ideal for HVAC maintenance checks and troubleshooting
Please ask any questions and I will do my best to answer
